Motorized XY stage for Microscope
NEXT-GENERATION MOTORIZED XY STAGE SYSTEM
Redefining Precision, Speed, and Control for R&D and Imaging Applications
🧭 PRODUCT OVERVIEW

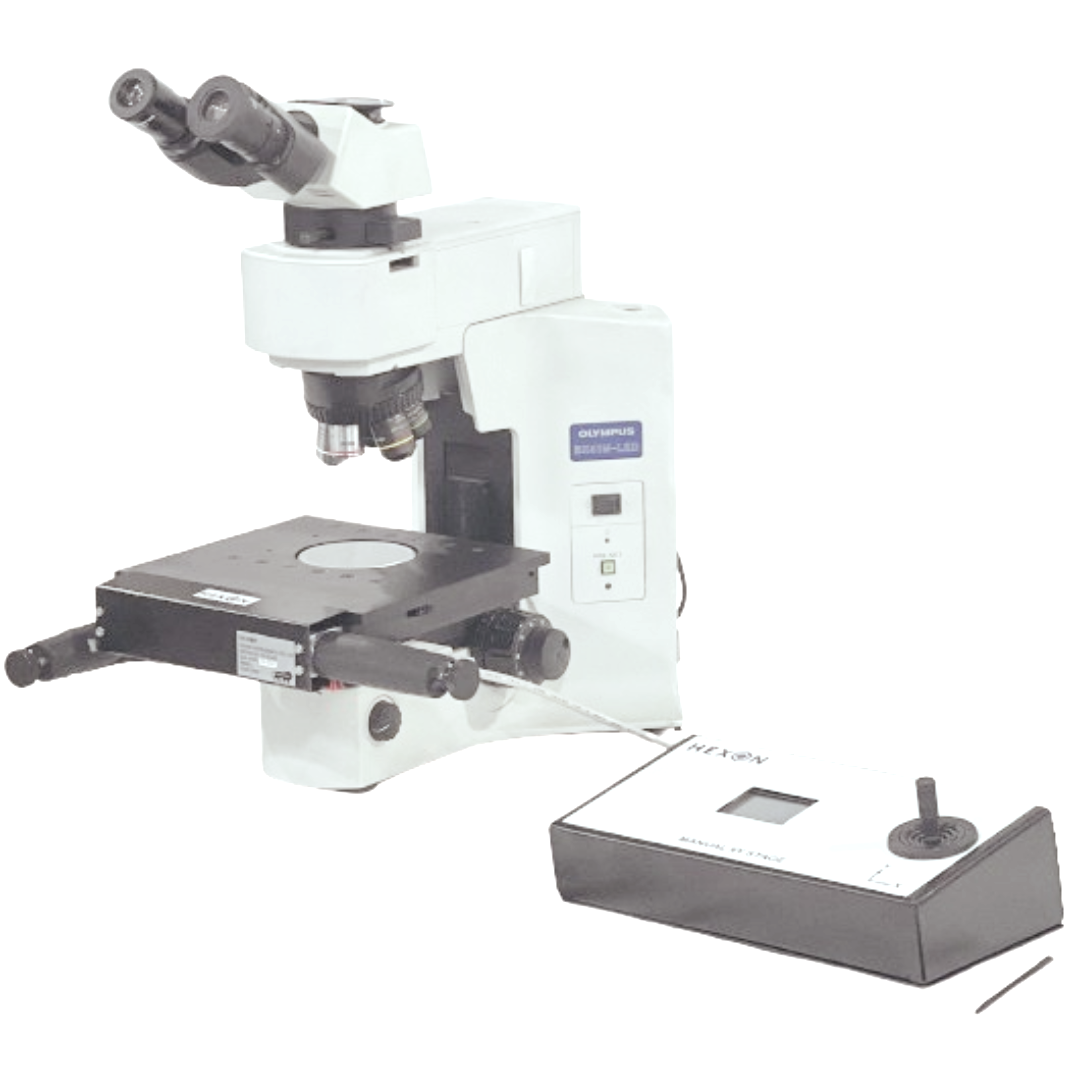

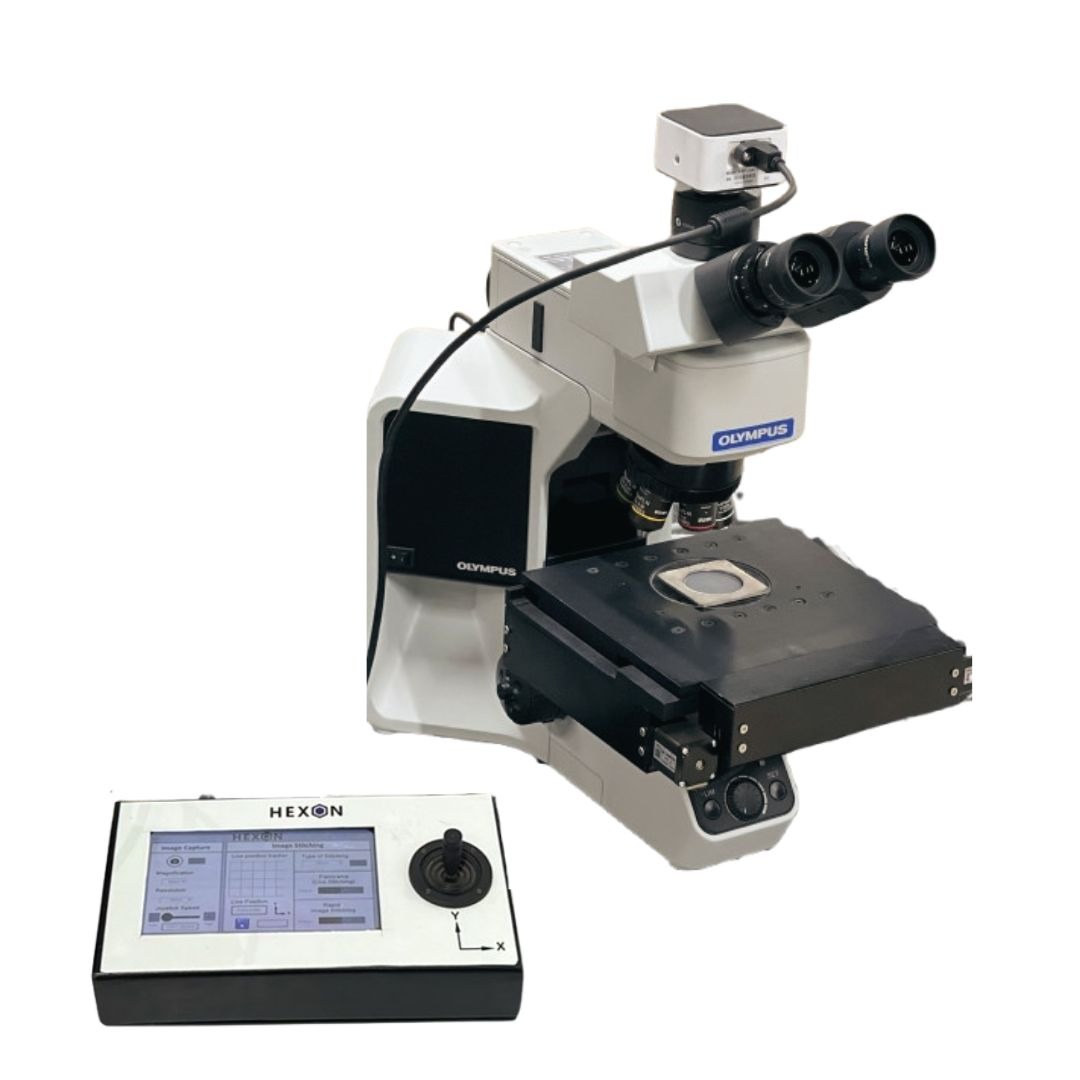

HEXON’s newly launched Motorized XY Stage is a precision motion platform engineered for advanced microscopy, material analysis, imaging, and microstructure measurement. Equipped with user-friendly control, high-resolution motors, and intelligent movement tracking, it is ideal for demanding research labs and industrial automation setups.
Whether it’s for panoramic image stitching, sample positioning, or nanoscale measurements — this motorized stage brings automation and accuracy to your fingertips.
KEY FEATURES
- 🔍 Panorama Image Stitching: Ideal for filter paper, textiles, biological samples
- 📐 Precise Microstructure Measurement: Directly on screen via HMI
- 🎮 User-Friendly Joystick Navigation: Manual control with ultra-fine speed response
- 📍 Targeted Positioning: Move to exact (X,Y) coordinates
- 💾 Data Logging & Tracking: Know your exact position at all times
- 🔄 Automatic Homing System: Repositions stage safely on shutdown or restart
- 🛠 Customizable Options: Resolution, travel range, inserts, limit switch type
- 🔧 Industrial Build: Durable anodized aluminium construction ensures longevity and stability
DETAILED TECHNICAL SPECIFICATIONS
| Travel Range | 3 Configurations: 75×50 mm, 100×100 mm, 200×200 mm |
| Travel Speed | Up to 2 mm/s (customizable models available at 0.66 mm/s for ultra-precision work) |
| Accuracy | ±3 μm (High precision model) ±5 μm (Standard model) |
| Resolution | Standard: 0.6 μm Optional: 1.13 μm, 244 nm, 65 nm Custom: Down to 15 nm |
| Motor Type | 2-Phase Stepper Motor (Standard) Gear Servo Motor (High-Precision Variant) |
| Speed Control | Via Ergonomic Joystick with Variable Speed Proportional to Movement |
| Positioning Control | Move to absolute or relative positions via HMI |
| Homing Functionality | Manual Homing Button Auto Homing on Power-Off (Premium variant) |
| Limit Switches | Optical Light Barriers Optional Inductive Limit Switch (for rugged environments) |
| Position Tracking | Real-time feedback on stage coordinates |
| Measurement Capability | Integrated tools for microstructure size estimation |
| Material & Finish | CNC-Machined Aluminium with Black Anodic Coating |
| Weight | ~2.5 kg (Standard Model) ~3.0 kg (High-Precision Servo Model) |
| Stage Insert | Customizable inserts available upon request |
| Console Interface | High-Resolution HMI Touchscreen Display with Integrated Joystick |
| Power Supply | 230V / 50 Hz (Custom options available) |
| Software Compatibility | Optional PC software for automated scanning and data logging (available on request) |

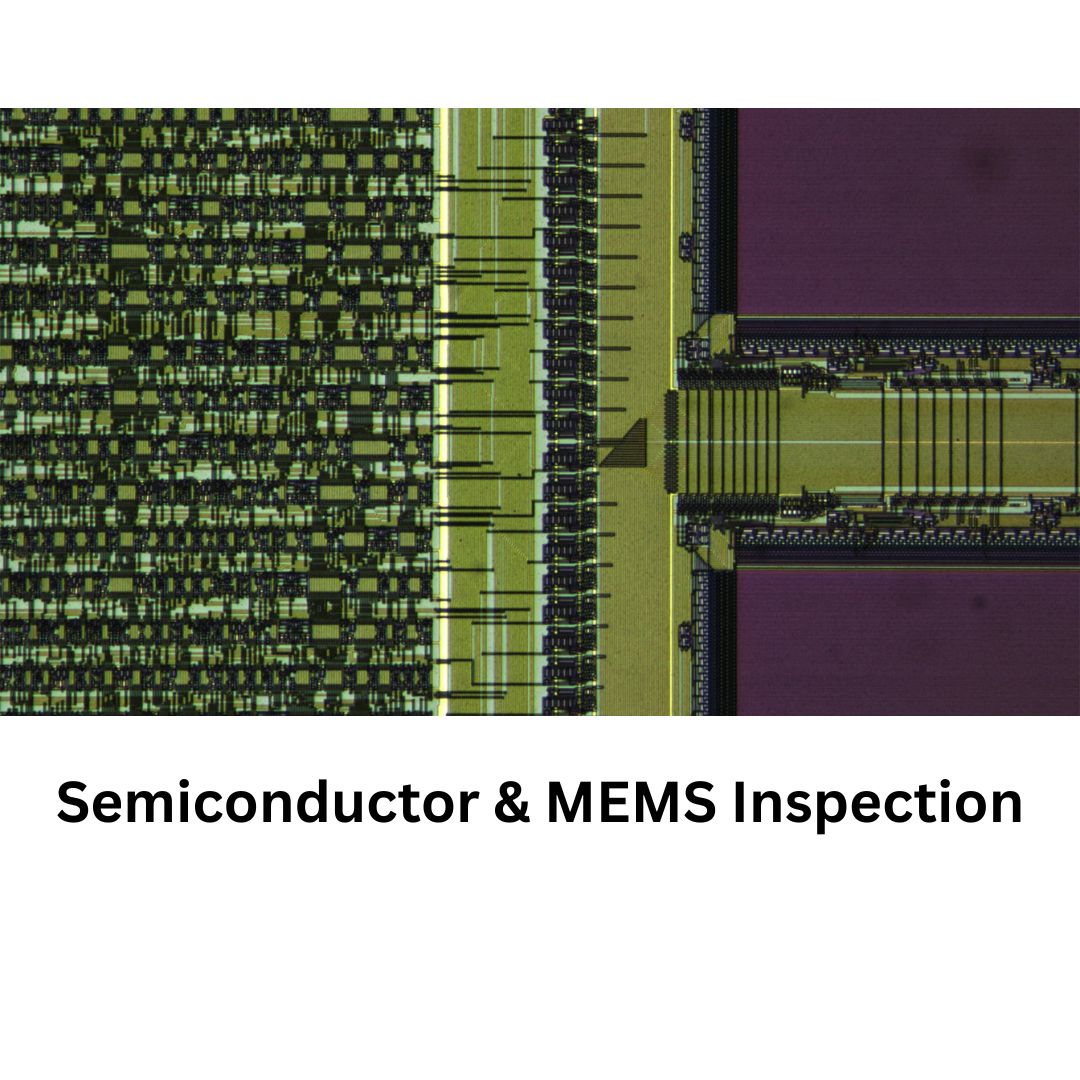

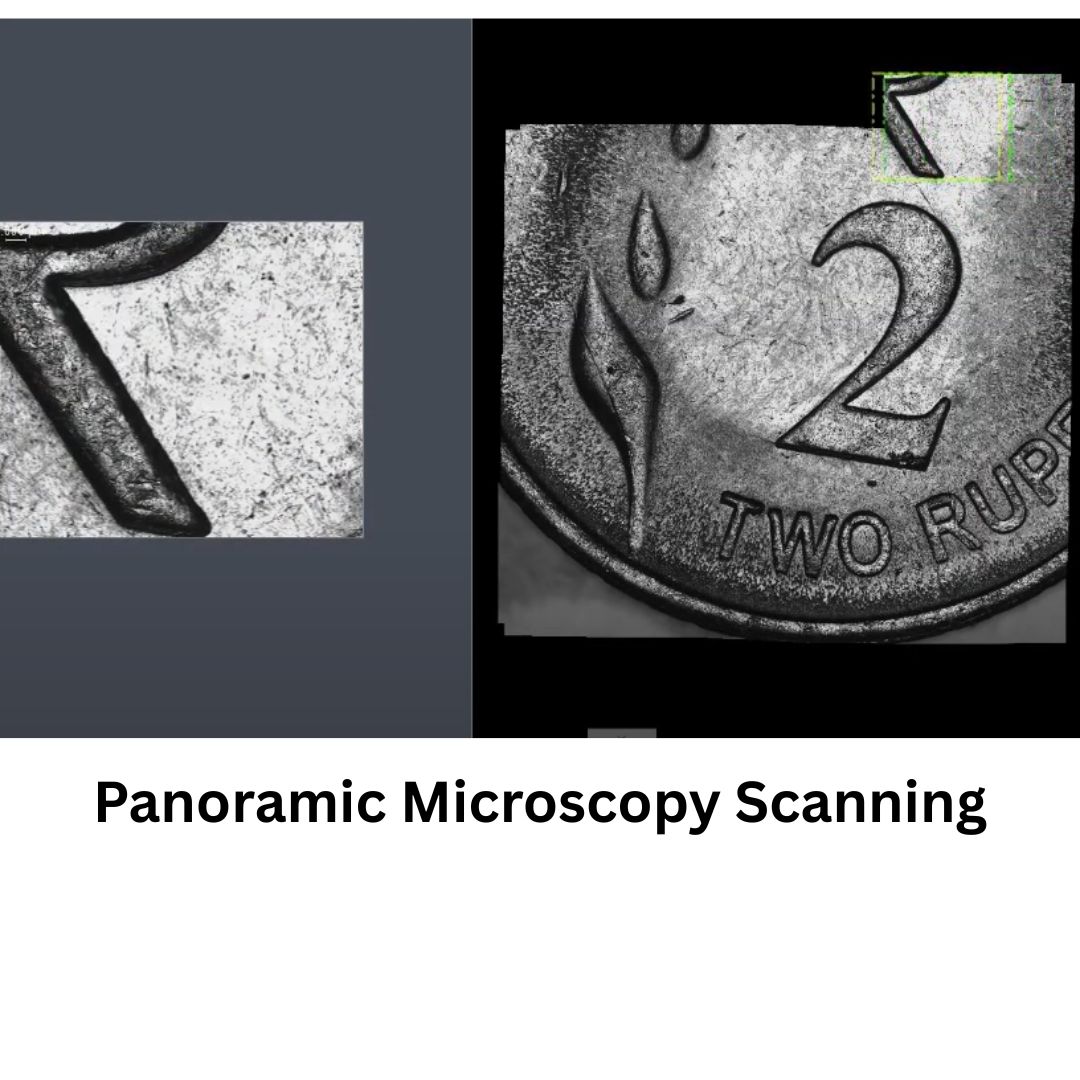

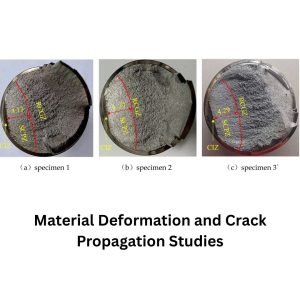

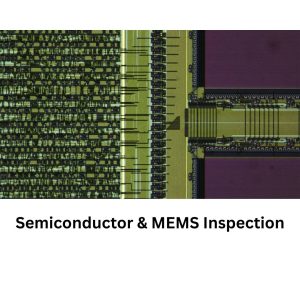

APPLICATION AREAS
WHY CHOOSE HEXON XY STAGE?
✅ Customizable Precision — From μm to nanometer resolutions
✅ Dual Motor Option — Choose stepper or servo for your application
✅ Flexible Interface — Intuitive HMI and joystick control
✅ Modular Build — Adaptable stage size and insert
✅ Panorama Ready — Built-in for high-resolution imaging
✅ Proven Technology — Installed at renowned institutes and Industry.
ADD-ON OPTIONS (ON REQUEST)
✅PC Software for Auto-Scanning
✅ Z-axis Integration
✅ Remote-Control Access
✅Custom Surface Inserts
✅ Camera Mounts & Optical Modules
