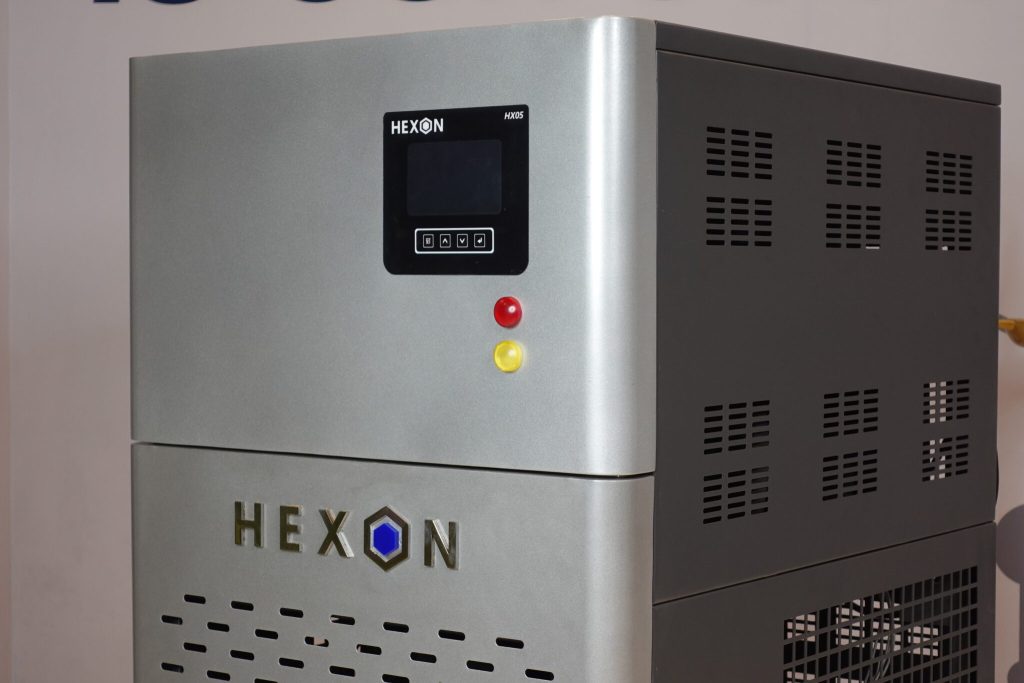

Smart Chillx 42
The smart chillex 42 home screen has an interactive digital display which shows all the data and
parameters for the chiller such as alerts, setting buttons, temperature etc. Upon switching on
the device the front page on the smart display consists of the following parameters:
Flow Rate in I/min
Water line pressure in kg/cm2
Tank water level in percentage
Alert Screen
Error screen automatically pops up when system has Low Water Flow 6‹ Low Water Level, saving the system from dry run damage.
Home Screen
Home screen or front page on the display con- sists of, Flow rote in L/min, Water line pressure in kg/cm* and Tank water level in percentage(°/‹)
Operation & Buttons
On pressing SET button the display moves to second screen where you can set temperature using the RAISE button to increase setpoint, LOWER to de- crease the setpoint and ENTER button to send value to the system.
SPECIFICATIONS
| Sr. No. | Parameters | Values |
|---|---|---|
|
1
2 3 4 5 |
Heat dissipation capacity Fluid medium Water flow rate Supply Water Pressure Supply Water Temperature |
4200 kcal/h (Max.)
Distilled water 4 — 7.5 I/min (adjustable) 3 to 5 kg/cm2 15 to 25 oC (adjustable) |
| Sr. No. | Parameters | Values |
|---|---|---|
|
1
2 3 4 5 6 7 8 9 10 11 12 13 14 |
Compressor Refrigerant Condenser Evaporator Water Tank Capacity Display Tank Material Water recirculation pump Temperature Control Water Piping Pipe Connection Water supply connections Power Requirement Physical dimensions |
CR22K6M (1.5TR), 1 Ph
R22 Forced air cooled Compact Plate Heat Exchanger 45 L Nextion 5" HMI Polypropylene Rotary vane pump (Brass) Digital Setting & Readout (+ 1oC) Braided PVC pipe 9.5 mm ID 3/8" BSP SS/ Brass Construction 230V / 1 PH / 50 Hz 835mm^1200mm^630mm (L^h^B) |
OTHER FEATURE
- Safety time-delay for compressor re-start 3 minutes (adjustable).
- Water filter of 100 micron at suction line of the pump.
- Compact brazed plate heat exchanger for high cooling efficiency.
- Powder coated MS body for corrosion free use.
- Castor wheels for easy movement.
