Radiant RHX300 Hot Stage
Temperature control from Ambient to 300 °C. The Radiant RHX300 hot stage is optimized for
isothermal analysis of samples where high-speed heating
and thermal stability are required.
Radiant RHX300 Hot Stage
- Hotstage has real time display of temperature and graph.
- Versatile Heating allows attainment of desired temperature and step halts at various temperature
ranges. - A unique engineered design for sensor position allows better accuracy in temperature monitoring in
range from Ambient to 300°C. - Easy sample mounting where it is in direct contact with heating element.
- The system consists of 2 wires with Dx16 connectors, a stage and a HMI controller.
- The user—friendly HMI helps ease the operation and creating process.
![](https://hexoninstruments.com/wp-content/uploads/2022/03/Screenshot-2022-03-16-101347-1.png)
Youtube Videos
FEATURES
![](https://hexoninstruments.com/wp-content/uploads/2022/03/1.png)

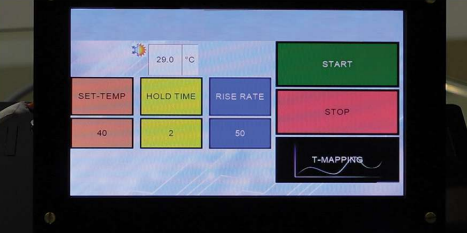

Touch Screen Control
Touch screen control system for easy operation to input desired set temperature, hold time and temperature Rise Rote.
![](https://hexoninstruments.com/wp-content/uploads/2022/03/2.png)

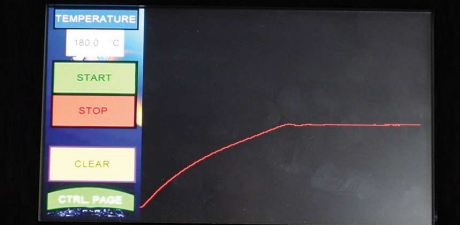

Live Graphic Display
Live display of data in Graphs 6 Numeric values Easy capture of images with scale and temperature
![](https://hexoninstruments.com/wp-content/uploads/2022/11/IMG_2426-removebg-preview-2d.png)

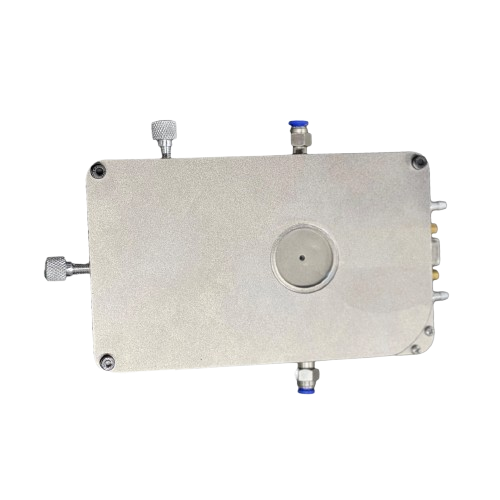

Innovative Design
Its innovative design allows you to mount it directly on manual stage or motorized stage without need to remove it.
APPLICATIONS
![](https://hexoninstruments.com/wp-content/uploads/2022/03/1-1.png)
Pharmaceuticals
![](https://hexoninstruments.com/wp-content/uploads/2022/03/2-1.png)
Plastics and Polymers
![](https://hexoninstruments.com/wp-content/uploads/2022/03/3-1.png)
Food Research
![](https://hexoninstruments.com/wp-content/uploads/2022/03/4.png)
Semiconductor
![](https://hexoninstruments.com/wp-content/uploads/2022/03/5.png)
Geological & Life Science
![](https://hexoninstruments.com/wp-content/uploads/2022/03/6.png)
Materials and Metallurgy
SPECIFICATIONS OF HOT STAGE
The system consists of a GMM300 (Radiant RHX300) stage and Control Pad
system controller. It has the following specifications:
- The temperature range: Ambient temperature to 300°C.
- The temperature stability is 0.1°C.
- Maximum heating rate: 100°C/min.
- Heating stage is made of silver of 25 mm diameter.
- Objective lens working distance: 6.5 mm.
- Aperture hole: 2 mm.
- Capability: Reflected and transmitted light.
