Industrial Heating and Cryocooling Chiller
(-20 to 90°C)
The smart chiller home screen has an interactive digital screen which shows all the data and parameters for the chiller such as alerts, setting buttons, temperature etc. Upon switching on the device the front page on the smart display consists of the following parameters:
Chiller Flow Rate in I/min
Chiller Water line pressure in kg/cm2
Chiller Tank water level in percentage

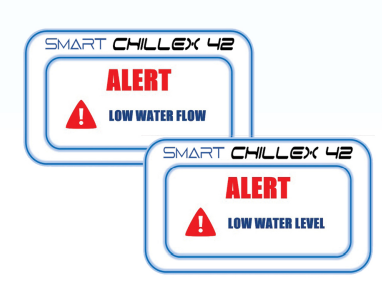

Alert Screen
In Chiller the Error screen automatically pops up when system has Low Water Flow 6‹ Low Water Level, saving the system from dry run damage.
Home Screen
In Chiller the Home screen or front page on the display con- sists of, Flow rote in L/min, Water line pressure in kg/cm* and Tank water level in percentage(°/‹)
Operation & Buttons
In Chiller the On pressing SET button the display moves to second screen where you can set temperature using the RAISE button to increase setpoint, LOWER to de- crease the setpoint and ENTER button to send value to the system.
Chiller SPECIFICATIONS
| Sr. No. | Parameters | Values |
|---|---|---|
|
1
2 3 4 5 |
Supply Water Temperature Heat dissipation capacity Fluid medium Water flow rate Supply Water Pressure |
-20 to 90°C (adjustable) 300 - 1000 W Distilled water 4 — 20 L/min (Customizable) upto 10 kg/㎠ |
| Sr. No. | Parameters | Values |
|---|---|---|
|
1
2 3 4 5 6 7 8 9 10 11 12 13 14 |
Compressor Refrigerant Condenser Evaporator Water Tank Capacity Display Tank Material Water recirculation pump Temperature Stability Water Piping Pipe Connection Water supply connections Power Requirement Physical dimensions |
Emerson Coapland
R134 Forced air cooled Compact Plate Heat Exchanger 10 - 100 L Nextion 5" HMI Polypropylene/SS Rotary vane pump/Centrifugal pump 0.1 oC Braided PVC pipe 3/8"-7/8" BSP SS/ Brass Construction 230V / 1 PH / 50 Hz or 440V/3 PH / 50Hz 835mm^1200mm^630mm (L^h^B) |
OTHER FEATURE OF CHILLER
- Water filter of 100 micron at suction line of the pump.
- Compact brazed plate heat exchanger for high cooling efficiency.
- Powder coated MS body for corrosion free use.
- Castor wheels for easy movement.
