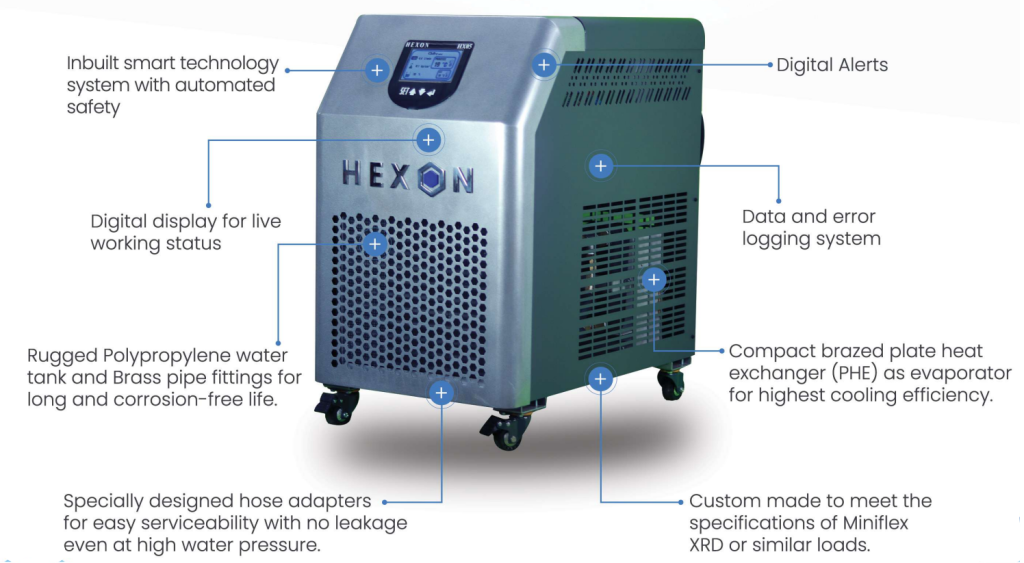

Smart Chillex Mini
The smart chillex mini comes with an inbuilt smart technology featuring alerts and system-cutoff during low water flow or low water level. Smart chillex is backed-up by efficient and timely maintenance service.

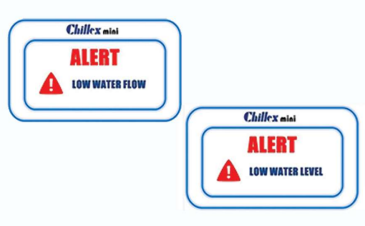

Automated Alerts for Smart Chillex
Error screen automatically pops up when system has Low Water Flow 6‹ Low Water Level, saving the system from dry run damage.
Home Screen of Smart Chillex
Home screen or front Dage on the display consists of, Flow rote in L/min, Water line pressure in kg/cm° and Tank woter level in percentage(°/ ).
Operotion & Buttons of Smart Chillex
On Pressing set button. The display moves to second screen where you can set temperature using the RAISE button to increase setpoint, LOWER to decrease the setpoint and ENTER button to send value to the system.

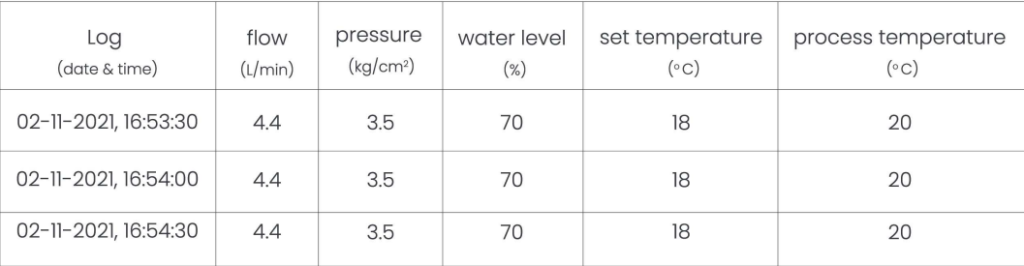

IN-BUILT DATA LOGGING SYSTEM
Smart Chillex System logs data and error status at every 30 sec. It also enables easy extraction of error log via
memory card for system.
| Sr. No. | Parameters | Values |
|---|---|---|
|
1
2 3 4 5 |
Heat dissipation capacity Fluid medium Water flow rate Supply Water Pressure Supply Water Temperature |
950 kcal/h (Max.)
Distilled water 2 — 6 L/min (adjustable) 1 to 5 kg/cm2 12 to 30 oC (adjustable) |
| Sr. No. | Parameters | Values |
|---|---|---|
|
1
2 3 4 5 6 7 8 9 10 11 12 13 14 |
Compressor Refrigerant Condenser Evaporator Water Tank Capacity Display Tank Material Water recirculation pump Temperature Control Water Piping Pipe Connection Water supply connections Power Requirement Physical dimensions |
Rotary Compressor 0.STR
R134a Forced air cooled Compact Plate Heat Exchanger 13 L Nextion 5" HMI Polypropylene Rotary vane pump (Brass) Digital Setting & Readout (+ 1 oC) Braided PVC pipe 9.5 mm ID 3/8" BSP SS/ Brass Construction 230V / 1 PH / 50 Hz 445mmx695mmx770mm (wxdxh) |
CUSTOMIZABLE FEATURE
OTHER FEATURE
Smart Chillex can be customized as per your requirements, the users can pick to choose the feature they want to add to
- Ambient Temperature
- Humidity
- Remote Display
- Smart Chillex Safety time-delay for compressor re-start 3 minutes (adjustable).
- Smart Chillex Water filter of 100 micron at suction line of the pump.
- Smart Chillex Compact brazed plate heat exchanger for high cooling efficiency.
- Powder coated MS body for corrosion free use.
- Smart Chillex Castor wheels for easy movement.
