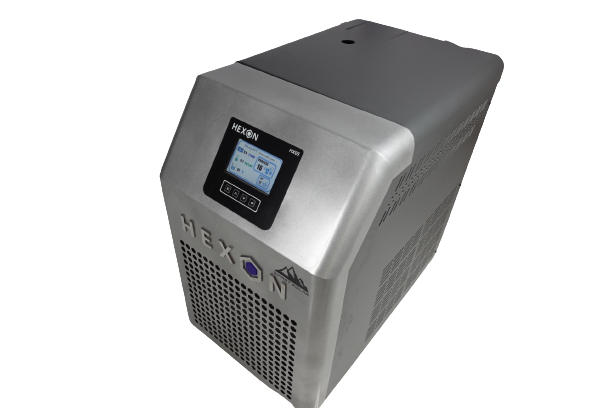

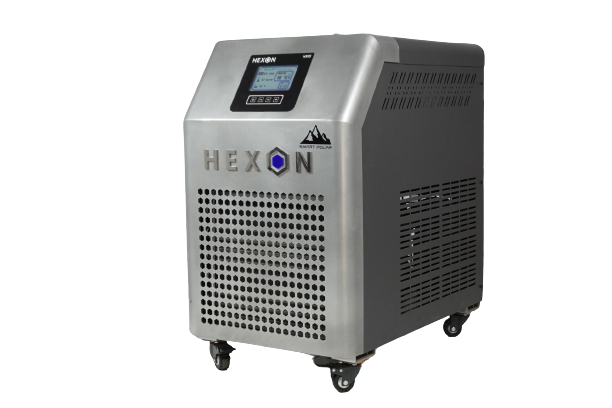

Smart Polar

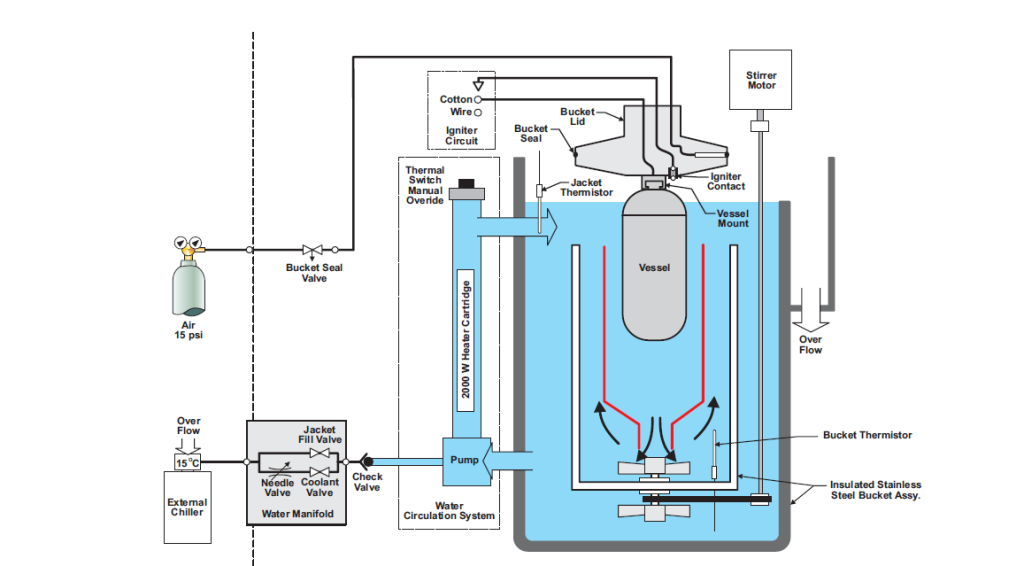

Efficient Cooling For Bomb Calorimeter

In Smart Polar the cooling/heating jacket regulates the process temperature.

The smart polar comes with an inbuilt smart technology featuring alerts and system-cutoff during low water flow or low water level. Smart polar is backed-up by efficient and timely maintenance service.

Automated Alerts in Smart Polar

Error screen automatically pops up when system has Low Water Flow 6‹ Low Water Level, saving the system from dry run damage.

Home Screen in Smart Polar

Home screen or front Dage on the display consists of, Flow rote in L/min, Water line pressure in kg/cm° and Tank woter level in percentage(°/ ).

Operotion & Buttons of Smart Polar

On Pressing set button. The display moves to second screen where you can set temperature using the RAISE button to increase setpoint, LOWER to decrease the setpoint and ENTER button to send value to the system.

IN-BUILT DATA LOGGING SYSTEM FOR SMART POLAR

In Smart Polar System logs data and error status at every 30 sec. It also enables easy extraction of error log via
memory card for system.

Sr. No. Parameters Values
1
2
3
4
5
Heat dissipation capacity
Fluid medium
Water flow rate
Supply Water Pressure
Supply Water Temperature
950 kcal/h (Max.)
Distilled water
1 — 2 L/min (adjustable)
1 to 3 kg/cm2
12 to 30 oC (adjustable)
Sr. No. Parameters Values
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Compressor
Refrigerant
Condenser
Evaporator
Water Tank Capacity
Display
Tank Material
Water recirculation pump
Temperature Control
Water Piping
Outlet Water Piping
Pipe Connection
Water supply connections
Power Requirement
Physical dimensions
Rotary Compressor 0.5 TR
R134a
Forced air cooled
Compact Plate Heat Exchanger
13 L
Nextion 5″ HMI
Polypropylene
Rotary vane pump (Brass)
Digital Setting & Readout (+ 1 oC)
Braided PVC pipe 9.5 mm ID
Hose connector pipe 6 mm ID
3/8″ BSP
SS/ Brass Construction
230V / 1 PH / 50 Hz
445mmx695mmx770mm (wxdxh)

CUSTOMIZABLE FEATURE

OTHER FEATURE

The Smart polar can be customized as per your requirements, the users can pick to choose the feature they want to add to

  1. Ambient Temperature
  2. Humidity
  3. Remote Display
  •  Smart polar Safety time-delay for compressor re-start 3 minutes (adjustable).
  •  Smart polar Water filter of 100 micron at suction line of the pump.
  • Compact brazed plate heat exchanger for high cooling efficiency.
  •  Smart polar Powder coated MS body for corrosion free use.
  •  Smart polar Castor wheels for easy movement.
