Smart Chillex Mega (>5Tr)
![](https://hexoninstruments.com/wp-content/uploads/2022/06/CHILLEX_MEGA-removebg-preview.png)
The smart Chillex Mega comes with an inbuilt smart technology featuring alerts and system-cutoff during low water flow or low water level. Smart polar is backed-up by efficient and timely maintenance service.
Flow Rate in I/min
Water line pressure in kg/cm2
Tank water level in percentage
![](https://hexoninstruments.com/wp-content/uploads/2022/03/1-2.png)
Alert Screen
Error screen automatically pops up when system has Low Water Flow 6‹ Low Water Level, saving the system from dry run damage.
![](https://hexoninstruments.com/wp-content/uploads/2022/03/2-2.png)
Home Screen
Home screen or front page on the display con- sists of, Flow rote in L/min, Water line pressure in kg/cm* and Tank water level in percentage(°/‹)
![](https://hexoninstruments.com/wp-content/uploads/2022/03/3-2.png)
Operation & Buttons
On pressing SET button the display moves to second screen where you can set temperature using the RAISE button to increase setpoint, LOWER to de- crease the setpoint and ENTER button to send value to the system.
IN-BUILT DATA LOGGING SYSTEM
System logs data and error status at every 30 sec. It also enables easy extraction of error log via
memory card for system.
![](https://hexoninstruments.com/wp-content/uploads/2022/03/Screenshot-2022-03-21-114546-1024x266.png)
![](https://hexoninstruments.com/wp-content/uploads/2022/06/DISPLAY-removebg-preview.png)

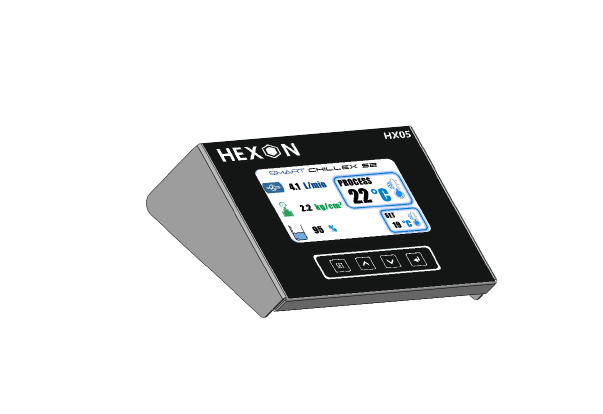

Inbuilt smart technology
the chiller can be customized as per your requirements, the users can pick to choose the feature they want to add to
- Ambient Temperature
- Humidity
- Remote Display
- Safety time-delay for compressor re-start 3 minutes (adjustable).
- Water filter of 100 micron at suction line of the pump.
- Compact brazed plate heat exchanger for high cooling efficiency.
- Powder coated MS body for corrosion free use.
- Castor wheels for easy movement.
SPECIFICATIONS
![](https://hexoninstruments.com/wp-content/uploads/2022/06/Screenshot-2022-06-30-123019.png)
OTHER FEATURE
- Safety time-delay for compressor re-start 3 minutes (adjustable).
- Water filter of 100 micron at suction line of the pump.
- Compact brazed plate heat exchanger for high cooling efficiency.
- Powder coated MS body for corrosion free use.
- Castor wheels for easy movement.
