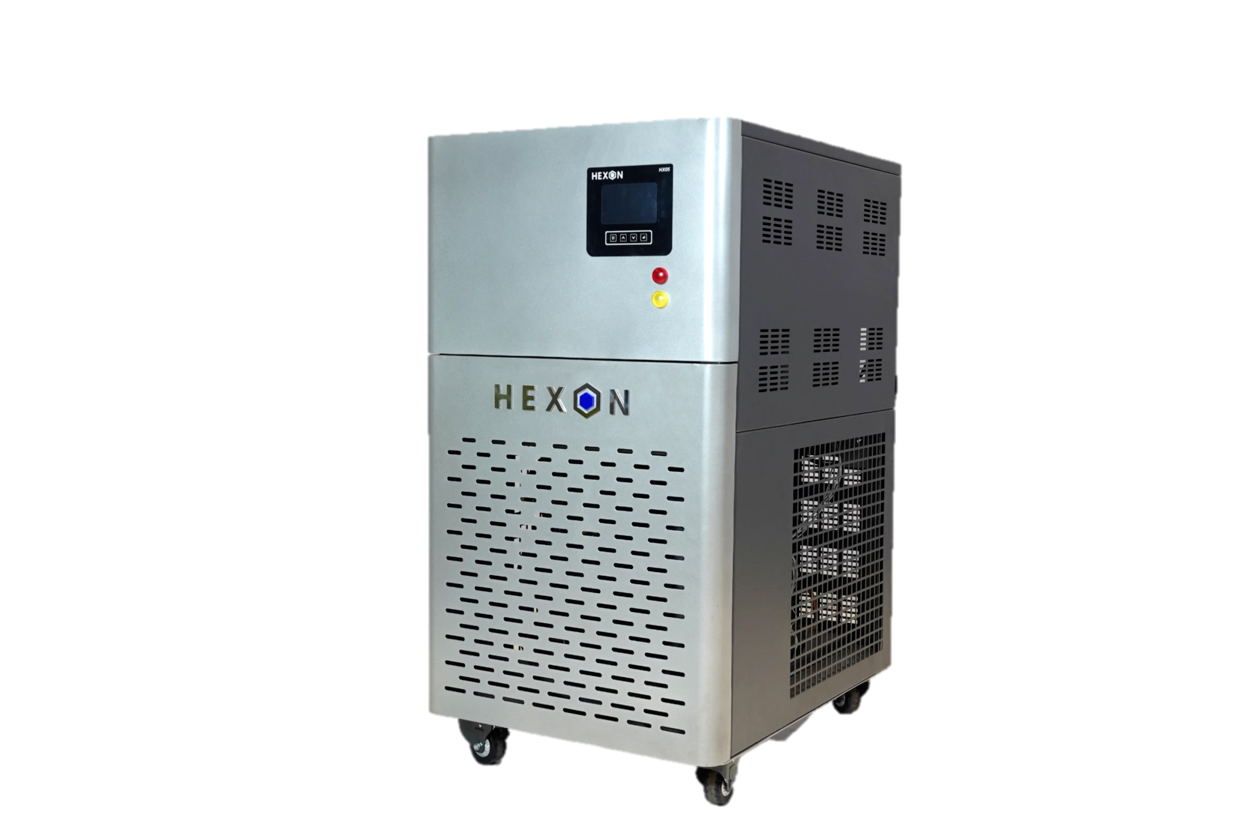

SMART CHILLEX 52

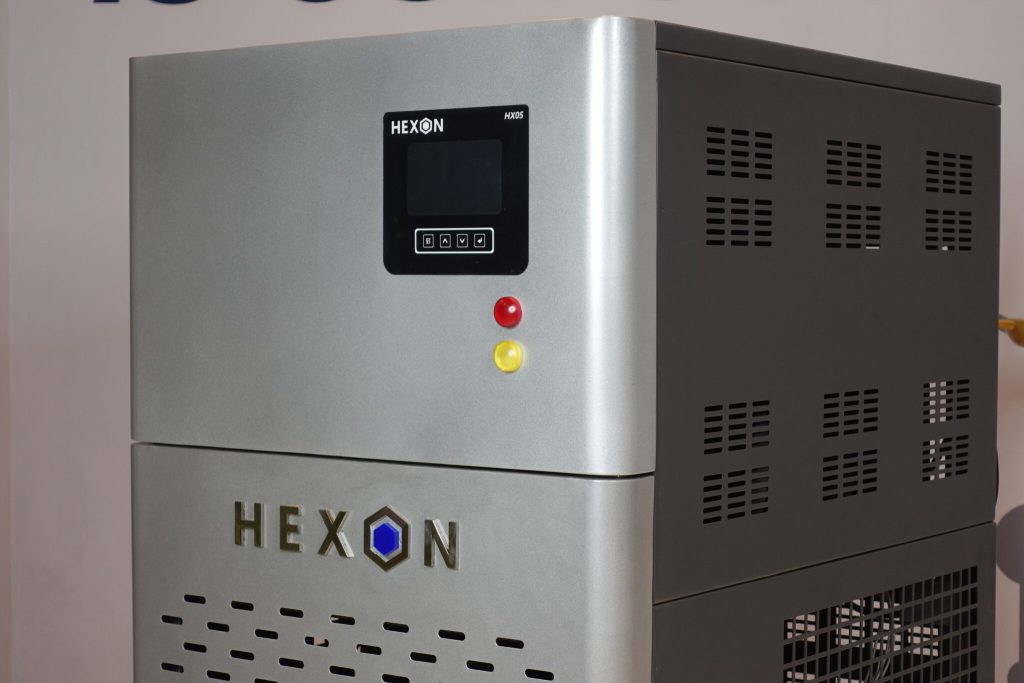

The smart chillex 52 home screen has an interactive digital display which shows all the data and
parameters for the chiller such as alerts, setting buttons, temperature ertc. Upon switching on
the device the front page on the smart display consists of the following parameters:
Flow Rate in I/min
Water line pressure in kg/cm2
Tank water level in percentage
Alert Screen
Error screen automatically pops up when system has Low Water Flow 6‹ Low Water Level, saving the system from dry run damage.
Home Screen
Home screen or front page on the display con- sists of, Flow rote in L/min, Water line pressure in kg/cm* and Tank water level in percentage(°/‹)
Operation & Buttons
On pressing SET button the display moves to second screen where you can set temperature using the RAISE button to increase setpoint, LOWER to de- crease the setpoint and ENTER button to send value to the system.
SPECIFICATIONS
| Sr. No. | Parameters | Values |
|---|---|---|
|
1
2 3 4 5 |
Heat dissipation capacity Fluid medium Water flow rate Supply Water Pressure Supply Water Temperature |
4200 kcal/h (Max.)
Distilled water 4 — 7.5 I/min (adjustable) 3 to 5 kg/cm2 15 to 25 oC (adjustable) |
Compressor : | Emerson Copeland 2 TR (Hermetically Sealed) |
Water recirculation pump : | Positive Displacement Rotary Vane Pump |
Condenser : | Air Cooled Type |
Evaporator : | Compact Plate type Heat Exchanger |
Refrigent Gas : | R407c or R134a |
Water Tank : | 100 Ltrs Capacity |
Tank Material : | S S |
Control Compressor : | ON/OFF by MCB contactor |
Temperature Stability : | +/-1deg C |
Inlet and output connection : | 3/8” BSP |
Water Piping : | Braided PVC pipe |
End Connection Valve : | 3/8 “ One in/out ball type SS |
Water supply connections: | SS/ Brass Construction |
Physical dimensions : | 600 mm (w) x 800 mm (d) x 1140 mm (h) (Without castors) |
Power Supply : | 1 Phase Power 230 Volts |
Cabinet : | Powder Coated MS Panels On MS Fabricated Shell with Castor wheels |
OTHER FEATURE
- Safety time-delay for compressor re-start 3 minutes (adjustable).
- Water filter of 100 micron at suction line of the pump.
- Compact brazed plate heat exchanger for high cooling efficiency.
- Powder coated MS body for corrosion free use.
- Castor wheels for easy movement.
